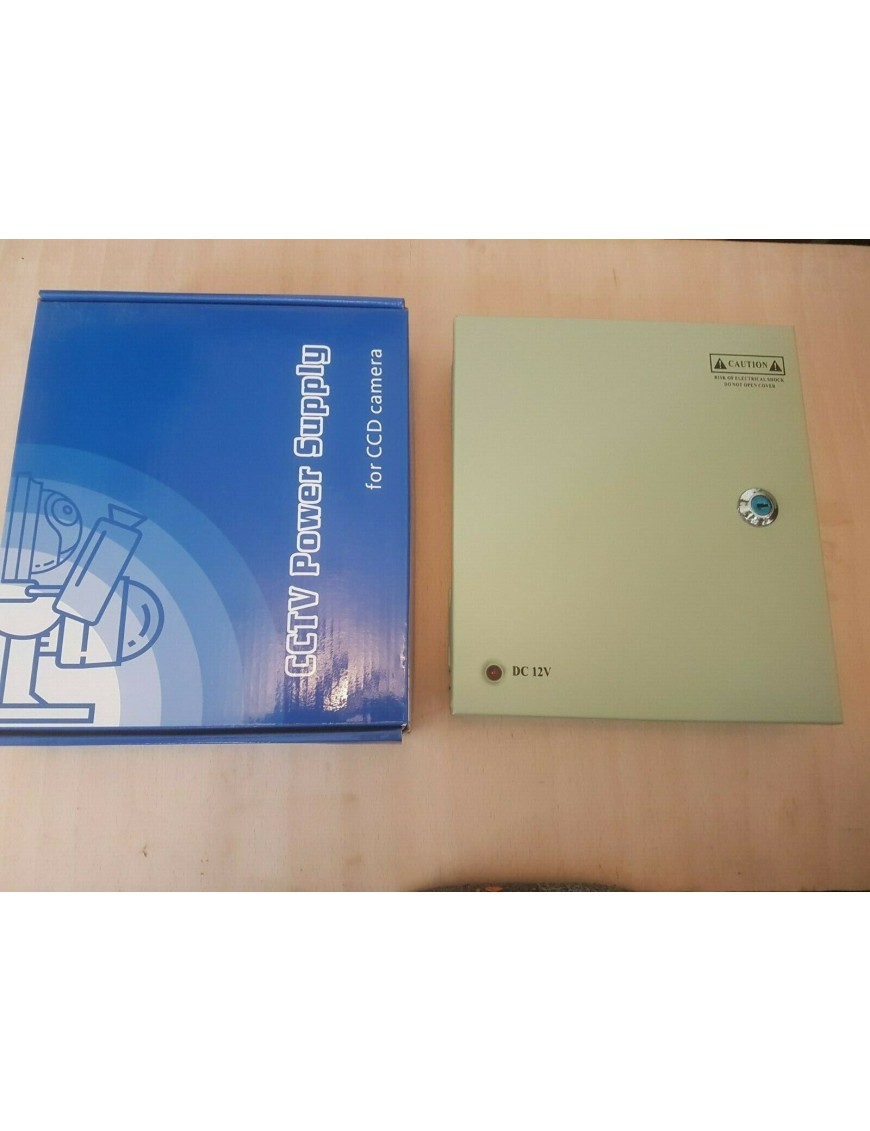

12V 10A DC 9 Output Power Supply Box Switch Mode CCTV Camera

Power supply panels for up to 9 cameras offer a more professional alternative to individual power adaptors.

Each outlet is individually fused and each panel is surge protected.

LED light for monitoring the power status.

Key lock prevents unauthorized access.

Pro-size box provides plenty space for wires. It is divided in low voltage and high voltage space, to protect from high voltage damage to cameras.

Specification:

– 12V DC regulated power box

– Input AC 110-240V

– 9 channel output

– Max. output 10Amp total

– Max. output 1Amp for each channel

– Support up 9  cameras, 9 individually outlet pairs

– Individual LED power indication, the red light shorts indicator helps you to know which camera is not working

 -Main power switch with integral PTC Fuse protection

– Metal case with lock prevents unauthorized access

  Output power: 240W

  Environment qualification:

• Working temperature: 0 to 40°C
• Storage temperature: 0 to 70°C
• Related humidity: 95% RH
• Cooling method: cooling by free air convection

  Input:

• Rated input voltage: 220V AC
• Input voltage range: 198 to 242V AC
• Input current: 2.3A
• Input power factor: PF
• Input frequency range: 50/60Hz
• Efficiency: >78%

  Output:

• Voltage without load: 12V DC
• Voltage regulation: 12V +5%V DC
• Voltage with full load: 12V, -5%, +5%V DC
• Current regulation: 1%
• Current range: 0.3 to 10A
• Ripple and noise: less than 100mV
• Peak: less than 250mV
• Start time: less than 3 seconds
• Hold up time: >20ms
